Home 1986 Ford Escort LX 1.9L L4 - Gas Rear Suspension

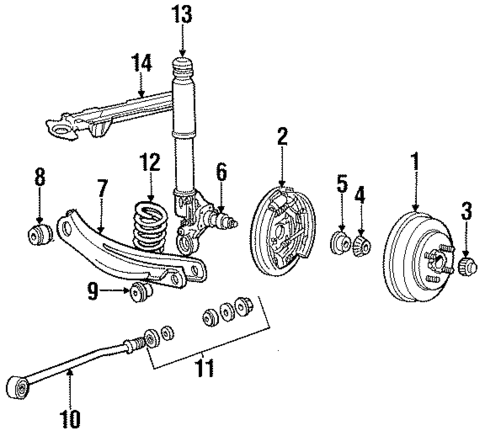

Rear Suspension for 1986 Ford Escort

No.

Part # / Description / Price

Price

Spindle

E43Z-4A013-A

Ford

Description: Without awd. All models. Right or left. 2wd. Tempo, Topaz. (3/85 - 87),.

View Details

Shock Absorber

F7AZ18125NA

Ford

Description: Escort, Lynx. 4 door. Station wagon. EXP. Without sport suspension, to 2/88. Escort, Lynx. 2 door. All models. Without GT. Hd. (3/85 - 87), heavy duty, sedan & wagon. Standard.

View Details

Wheel Bearing Cup

DOAZ-1217-B

Ford

View Details

Rear Wheel Bearing

E1FZ-1243-B

Ford

Description: Tempo, Topaz. Without awd. All models. Inner.

View Details

Grease Seal

E1FZ-1S175-A

Ford

Description: Tempo, Topaz. Without awd. All models. Wheel seal. 2wd. Rear. (3/85 - 87),. (81 to 3/85), grease retainer.

View Details

Bearing

E1FZ-1244-A

Ford

Description: Tempo, Topaz. Without awd. All models. 2wd. (3/85 - 87), inner. (81 to 3/85), inner.

Bearing

Ford

Control Arm

Ford

Description: Right or left. (3/85 - 87),.

View Details

Control Arm Bushing

E5FZ-5A638-A

Ford

Description: From 2/25/85. (3/85 - 87), body end.

View Details

Bushing

E1FZ-5A638-B

Ford

Description: From 2/25/85. To 2/25/85. Outer. (3/85 - 87), spindle end. (81 to 3/85), spindle end.

View Details

Coil Spring

E1FZ5560F

Ford

Notes: Parts & Prices Are For Estimating Purposes Only.

Description: Spring code f.

View Details

Insulator

E3FZ-5536-A

Ford

Description: All models. 2wd. Awd.

View Details

Trailing Arm

E4FZ5K898A

Ford

Description: Right or left. (81 to 3/85),.

View Details

Radius Rod Bushing Kit

E5FZ-5K897-A

Ford

Description: All models. Spindle side. Continental. Rear. Awd, spindle end. With heavy duty. (3/85 - 87),.

View Details

No.

Part # / Description / Price

Price

Hub & Drum

E4FZ-1113-B

Ford

Positions: Right

Description: (3/85 - 87), 7. (81 to 3/85), 7 inch, all models.

View Details

Drum

E4FZ1113A

Ford

Positions: Right

Description: 8 rear brakes. Unpainted. From 2/83. (3/85 - 87), 8. To 03/1985. 8" Brakes. Incl.Hub.

View Details

Backing Plate

E1FZ-2212-B

Ford

Positions: Left

Description: 2wd. Without awd. (3/85 - 87), 8. (81 to 3/85), 8 inch.

View Details

Backing Plate

E1FZ2212A

Ford

Positions: Left

Description: (3/85 - 87), 7. (81 to 3/85), 7 inch.

View Details

Backing Plate

E1FZ-2211-B

Ford

Positions: Right

Description: 2wd. Without awd. (3/85 - 87), 8. (81 to 3/85), 8 inch.

View Details

Backing Plate

E1FZ2211A

Ford

Positions: Right

Description: (3/85 - 87), 7. (81 to 3/85), 7 inch.

View Details

Bearing

E7TZ-1216-A

Ford

Positions: Right

View Details

Bearing

E1FZ-1244-A

Ford

Positions: Right

Description: Tempo, Topaz. Without awd. All models. 2wd. (3/85 - 87), inner. (81 to 3/85), inner.

View Details

Grease Seal

E1FZ-1S175-A

Ford

Positions: Right

Description: Tempo, Topaz. Without awd. All models. Wheel seal. 2wd. Rear. (3/85 - 87),. (81 to 3/85), grease retainer.

View Details

Spindle

E43Z-4A013-A

Ford

Positions: Left

Description: Without awd. All models. Right or left. 2wd. Tempo, Topaz. (3/85 - 87),.

View Details

Control Arm

E2FZ-5500-A

Ford

Positions: Left

Description: Right or left. (3/85 - 87),.

View Details

Control Arm Bushing

E5FZ-5A638-A

Ford

Description: From 2/25/85. (3/85 - 87), body end.

View Details

Bushing

E1FZ-5A638-B

Ford

Description: From 2/25/85. To 2/25/85. Outer. (3/85 - 87), spindle end. (81 to 3/85), spindle end.

View Details

Radius Rod

E5FZ-5K848-A

Ford

Positions: Left

Description: Right or left. (3/85 - 87),.

View Details

Radius Rod Bushing Kit

E5FZ-5K897-A

Ford

Positions: Left

Description: All models. Spindle side. Continental. Rear. Awd, spindle end. With heavy duty. (3/85 - 87),.

View Details

Spring

E3FZ5560A

Ford

Positions: Right

Description: Order by description. (3/85 - 87),. (81 to 3/85),.

View Details

Shock Absorber

F7AZ18125NA

Ford

Positions: Left

Description: Escort, Lynx. 4 door. Station wagon. EXP. Without sport suspension, to 2/88. Escort, Lynx. 2 door. All models. Without GT. Hd. (3/85 - 87), heavy duty, sedan & wagon. Standard.

View Details
